■ Built-in multiple pressure control levelling system to enhance stability
■ Precise load sensing system to improve overload safety operations
■ Integrated with rotary reducer to enhance rotation stability
■ Deadweight Lowering System for smooth operation and energy efficiency

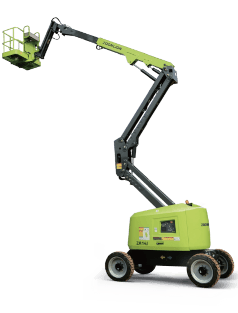

Articulating Boom Lift ZA45J
Work Height: 51ft 10in (15.80m)
Platform Capacity: 660 lb (300kg)
Gradeability: 45% (24°)

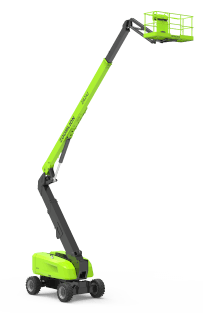

Articulating Boom Lift ZA64J
Work Height: 70ft 2in (21.38m)
Platform Capacity: 550 lb (250kg)
Gradeability: 45% (24°)

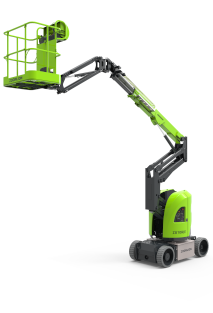

Articulating Boom Lift ZA32RJE
Work Height: 37ft 11in (11.55m)
Platform Capacity: 507lbs (230kg)
Gradeability: 35% (19°)

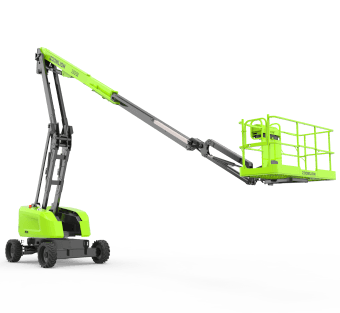

Articulating Boom Lift ZA64JE
Work Height: 70ft 4in (21.45m)
Platform Capacity: 550 lb (250kg)
Gradeability: 45% (24°)
High Performance
■ Centre layout, great structural rigidity, and small boom deflection Advanced dual control system (valve control + pump control)
■ Offers an energy-saving, smooth and efficient control
■ Both Diesel and Electric powered articulating boom lifts available
■ Accurate and efficient AC motor provides strong power and stable control ±90°
■ Jib rotation offers great up and over height
■ Compact dimension of 1.2m stowed width, ideal for narrow working conditions
■ Tubular batteries feature long working time and lifespan, and easy for maintenance
■ Provide greater work height range up to 21.45m (70ft 4in) and lift capacity of 250kg (550 lb) than competitor
■ Fast lift system directly lowers the boom from the highest position to the ground, no need to fold the boom to improve work efficiency.
■ Accurate and efficient traveling AC drive system and on-board motion AC drive system provides strong power and maintenance-free motor.
■ Independent auxiliary power system for more secure application
